25Gb/s 850-nm Oxide GaAs based Chip/Array Multi-mode VCSEL
/
詳細介紹

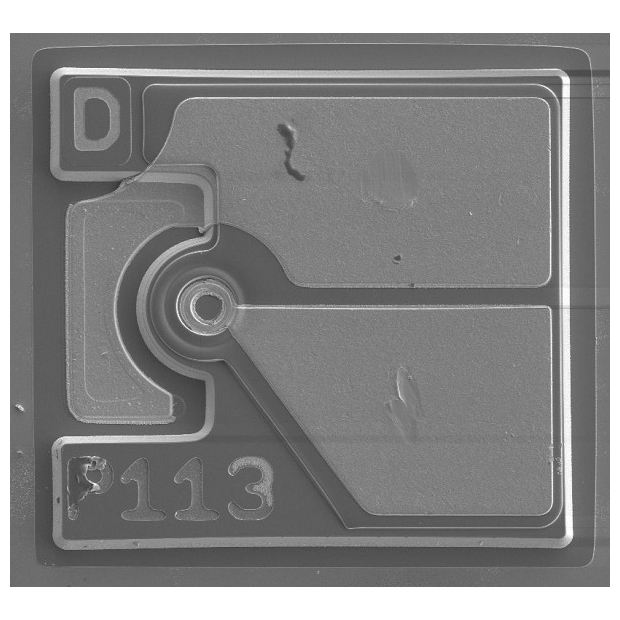

LiVE's high-speed multimode VCSEL array is specifically designed to meet the demand for high-speed data communication. The VCSEL is available in 1x1 chips or 1x4 arrays for the development of single-channel and parallel fiber optical communication links. The VCSEL emits multiple transverse modes with low spectral width and a circularly symmetric beam with low divergence, enabling highly efficient optical power coupling into 50-μm/125-μm multimode fiber. The VCSEL delivers high optical power and superior dynamic performance over wide temperature range.
Features
- 850-nm multimode operation
- Data rates from DC to 25 Gb/s
- Low operation current
- Output circularly symmetric beam with low divergence
- Top anode and cathode contact
- High reliability
- Telcordia GR468 compliant ready
Applications
- Compliant with 100 Gb Ethernet / 32G Fiber Channel / InfiniBand EDR
- Transceivers and active optical cables (AOC)
Please contact us for more information. Eamil: contacts@liveoptronics.com
